ABOUT MODULAR VERTICAL SORTED (MVS)
FAST, FLEXIBLE SORTATION.
AVAILABLE FROM UK STOCK.

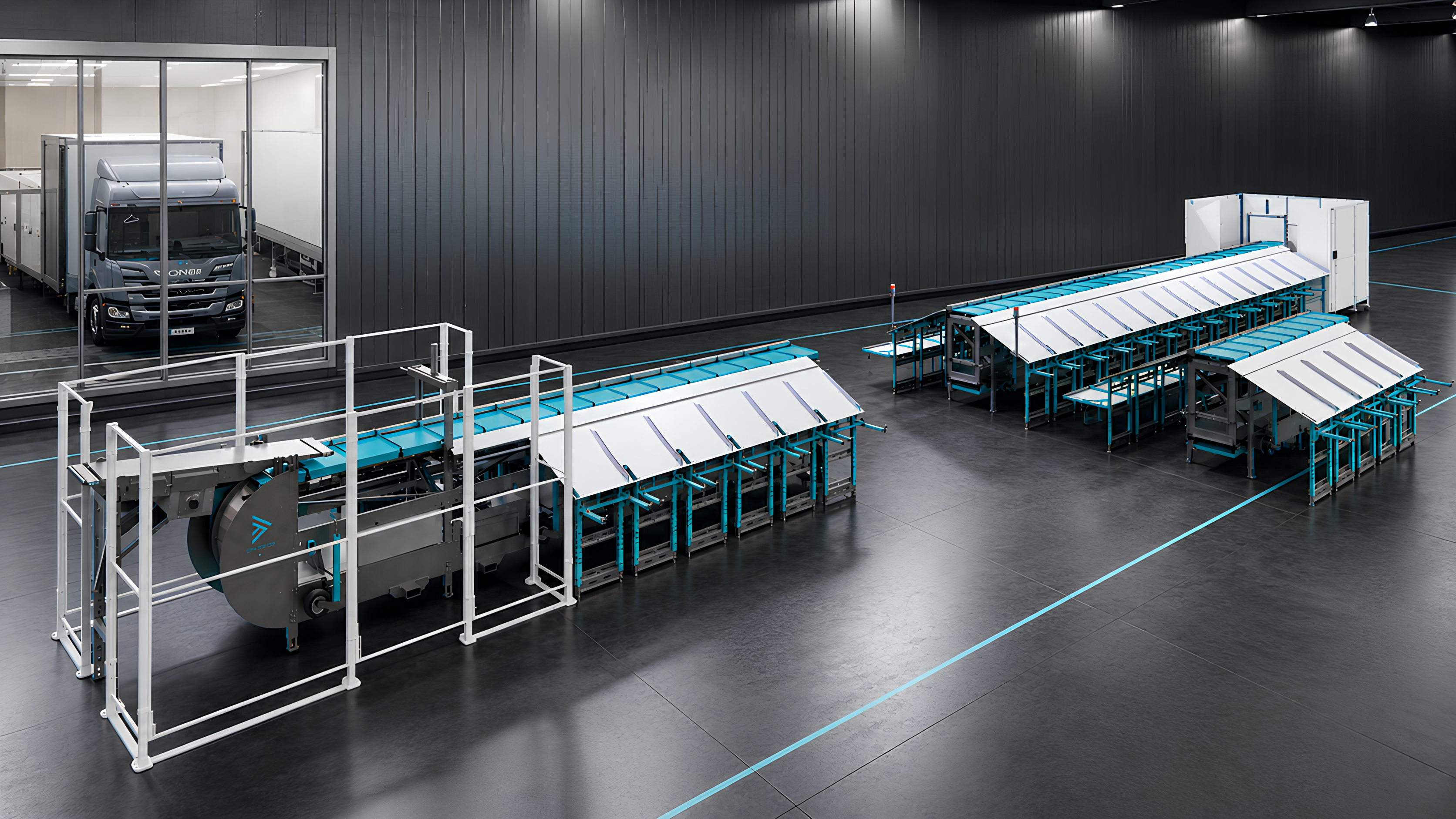

The BOWE Modular Vertical Sorter (MVS) is a high-performance linear sorter designed for parcels, packets, mail and warehouse applications. Combining proven push tray technology with a modular design, the MVS delivers exceptional throughput whilst remaining quick to install, easy to expand and simple to relocate as your operation evolves.
Designed as a flexible linear sorting solution, the system enables businesses to increase sorting capacity without committing to a fixed configuration from day one. Additional destinations can be introduced as requirements change, making the MVS suitable for growing ecommerce, parcel, 3PL, retail and mail operations.
Selected systems are currently available from UK stock, allowing businesses to significantly reduce lead times and accelerate implementation.
PERFORMANCE HIGHTLIGHTS
Throughput – Up to 9,800 trays/hourInstallation – 1-2 daysExpansion – 10-chute module in ~45 minutesRelocation – Under 72 hoursApplications – Mail, packets, parcels & warehouse sortation
HOW CAN WE HELP YOU?
WHY CHOOSE THE MVS?
A LINEAR SORTER DESIGNED FOR CHANGING OPERATIONS
Whether you’re expanding an existing operation or replacing ageing sortation equipment, the MVS has been developed to minimise disruption whilst maximising performance.
Its modular construction allows additional sort destinations to be added quickly, making it ideal for businesses experiencing seasonal peaks or long-term growth. Unlike many traditional sortation systems, the MVS can also be relocated if your warehouse layout or operational requirements change.
- High speed sorting
- Modular design
- Fast Plug & Play installation
- Standard software integration
- Proven push tray technology
- Easy relocation
- Low disruption
- Available from UK stock

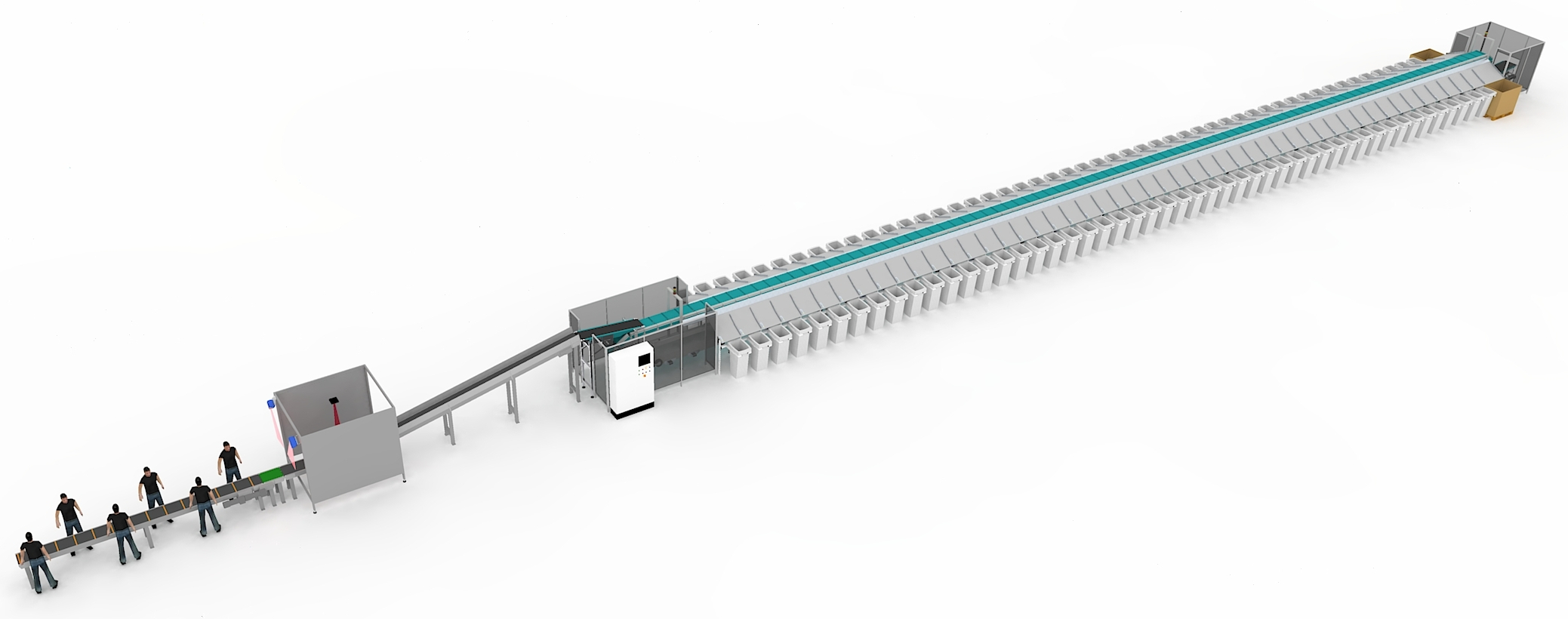

MVS 400.
Pricing: £755,000
(excluding transport)
Ideal for compact parcel and mail sorting operations.
- Tray: 400 × 400 mm
- Parcel: up to 350 × 350 mm
- 15 kg max
- Up to 9,800 trays/hour
- 97 destinations
- Direct bag discharge
- Top loading with 3-sided scanning
- Standard IT connectivity
- Optional weighing

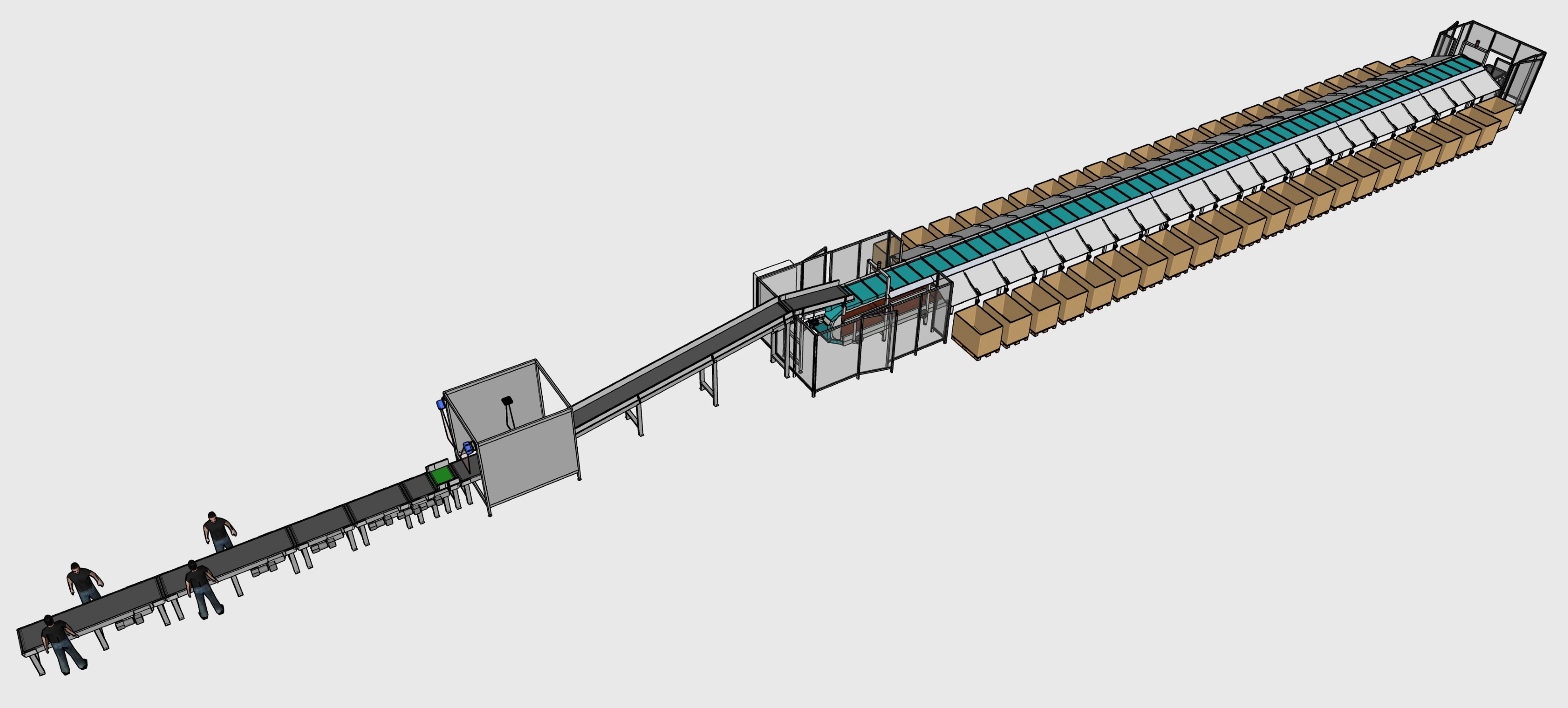

MVS 500.
Pricing: £650,000
(excluding transport)
Designed for larger parcel handling requirements.
- Tray: 500 × 700 mm
- Parcel: up to 450 × 650 mm
- 15 kg max
- Up to 8,000 trays/hour
- 43 destinations
- Direct pallet box discharge
- Top loading with 3-sided scanning
- Standard IT connectivity
- Optional weighing
- Optional additional modules
NEED A SORTER THIS QUARTER?
SYSTEMS AVAILABLE NOW
Unlike many automated sortation systems that require lengthy manufacturing lead times, BOWE UK currently has a number of Modular Vertical Sorters available for rapid deployment.This provides an excellent opportunity to increase capacity, replace ageing equipment or expand your operation without waiting months for a new build.
Availability is limited and subject to prior sale.
WATCH THE MVS SORTER IN ACTION!
WAREHOUSE AUTOMATED SOLUTIONS ACROSS ALL INDUSTRIES.
SORTATION SYSTEMS TAILORED TO YOUR APPLICATION.
The Modular Vertical Sorter (MVS) is a pay-as-you-grow sortation system. Giving you the flexibility to expand on demand, the MVS grows with your business. Here are some of the applications it can help with:
Parcel distributionEcommerce fulfilment3PLWarehouse operationsMail sortingRetail distributionCross-docking
